BS-GSP Series

Multi-Port Gigabit PoE Smart Switches. With Gigabit speeds, advanced management features, the convenience of Power over Ethernet and 8, 16 or 24 ports.

Product Data Sheet buy now

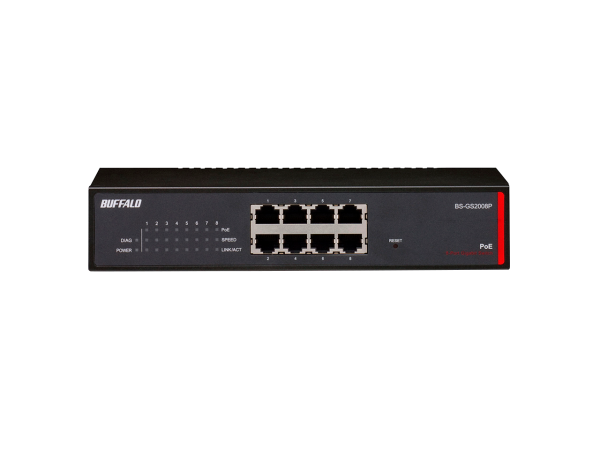

BS-GSP Series

Multi-Port Gigabit PoE Smart Switches. With Gigabit speeds, advanced management features, the convenience of Power over Ethernet and 8, 16 or 24 ports.

Buffalo’s Multi-Port Gigabit PoE Smart Switches provide a host of comprehensive HTTP/HTTPS web-based network management features including VLAN, SNMP, port trunking/link aggregation, DHCP snooping, STP support and 802.1p QoS. Along with 802.3az Green Ethernet technology, the BS-GSP Series includes an energy conservation feature that monitors the activity status of each port to reduce the total power consumed. Gigabit speeds, eco-minded operation, performance-minded features and a lifetime warranty make Buffalo’s BS-GSP Series of Multi-Port Gigabit PoE Smart Switches a perfect network extension solution for your office.

Number of Ports

8, 16 or 24 LAN

Bandwidth

16, 32, 48 Gbps

PoE Budget

30 W / port, Max 90 W (BS-GS2008P), Max 180 W (BS-GS2016P & BS-GS2024P), Mode A

Buffer memory

1,5 MB

Durable high temperature

Durable metal chassis and reliable design make it possible to be used under 50°C temperature. It can be used in various places such as the ceiling back of office, warehouse, factory…

Lifetime warranty

Buffalo’s high quality level delivers lifetime warranty. As long as the customer, who has registered within 90-days from purchase date, owns the product, we will replace the product for hardware failure replacement any time within the period. Read more

Network QuickView for easy monitoring

Buffalo Network QuickView software supports this product for managing and setting up multiple devices simultaneously, such as Switches or TeraStation. Learn more about Network QuickView

Power over Ethernet

Using PoE means getting supply power to network devices with an ethernet cable over the existing data connection.

  • With PoE you use one cable for both power and data transmission and this way you save money on purchasing and running cable for networking equipment and surveillance cameras
  • You can easyly and cheaper install and expand a network in buildings
  • With PoE you reduce the number of cables and electrical outlets needed

Network specification

Supported Standards
IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.1D Spanning Tree Protocol, IEEE802.1w Rapid Spanning Tree Protocol, IEEE802.1p Class of Service, Priority Protocol, IEEE802.1Q VLANs, IEEE802.3ad (LACP), IEEE802.3az, AUTO-MDIX
Number of Ports
8, 16 or 24 LAN
Data transfer rate
1000 Mbps (1000 BASE-T), 100 Mbps (100 BASE-TX), 10 Mbps (10 BASE-T), 1Gbps
Bandwidth
16, 32, 48 Gbps
Buffer memory
1,5 MB
Loop prevention
yes
VLAN feature
yes
QoS
yes
Warranty Period
Lifetime warranty
Port Trunking
yes

Other

Power Consumption (max.)
10,6W (BS-GS2008P), 14,6W (BS-GS2016P), 18,6W (BS-GS2024P)
PoE Budget
30 W / port, Max 90 W (BS-GS2008P), Max 180 W (BS-GS2016P & BS-GS2024P), Mode A

Product Part Numbers

Product Code
BS-GS2008P, BS-GS2016P, BS-GS2024P
Manuals / Setup / Latest Product Information
Documentation & Software BS-GS2008P 24-09-2018
Documentation & Software BS-GS2016P 24-09-2018
Documentation & Software BS-GS2024P 24-09-2018
Firmware
Release notes 1.0.3.43 05-11-2018
Firmware updater 1.0.3.43 All 05-11-2018
Utilities
MIB files for SNMP software 11-07-2018
Release Notes 2.1.0 09-01-2018
Business Switch Configuration Tool 2.1.0 Windows 09-01-2018
