DriveStation™ Mini Thunderbolt™

Dual Thunderbolt™ and dual SSD. 2-bay Hard Drive.

Product Data Sheet buy now

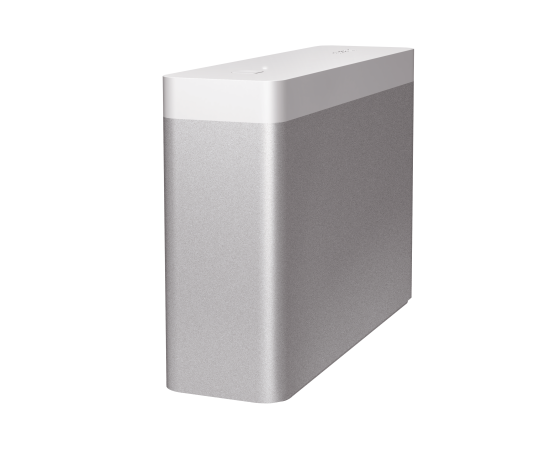

DriveStation™ Mini Thunderbolt™

Dual Thunderbolt™ and dual SSD. 2-bay Hard Drive.

Buffalo Technology’s new SSD-WAT series DriveStation™ Mini Thunderbolt™ has two Solid State Drives (SSD), and two Thunderbolt™ ports, which together can realize the SSD-WAT’s full potential to deliver fantastic speed. Perfect for creative production environments, demanding applications, and demanding home users.

Total Capacity

512GB, 1TB

Number of Drives

2

Drive Type

SSD

Drive Interface

SATA

RAID support

This DriveStation™ is ready for intensive data storage tasks and offers users a choice of supported RAID modes depending on the required capacity and redundancy.

Drives in series connection

Optionally, several SSD-WAT drives can be connected in series (daisy chain). This allows both speed and capacity to be further increased. The SSD-WAT series is particularly suitable for creative production environments and professional applications with large individual files such as videos or large amounts of data to be processed.

Thunderbolt™ technology

Thunderbolt™ technology dramatically increases transmission performance with a bi-directional speed of 10 Gbit/s and offers series connection for multiple devices.

Internal Hard Drives

Number of Drives
2
Drive Type
SSD
Total Capacity
512GB, 1TB
Drive Interface
SATA
Supported RAID Levels
Controlled by Host

Thunderbolt Interface

Standard Compliance
Thunderbolt™
Connector Type
Thunderbolt™ (Mini DisplayPort)
Thunderbolt™ Ports
2
Transmission Speed
Max: 10 Gb/s

Other

Client OS
Windows 10, Windows 8.1, Windows 8, Windows 7, Mac OS X 10.6 or later
Dimensions
45x102x154 mm
Weight
540g
Operating Environment
5-35°C, 0-80% (non-condensing)
Power Consumption (max,)
24W or 48W in daisy chain Watts
Power Supply
External AC 100-240V, 50/60Hz
Power Management System
Yes
Special Features
Daisy chain ready

Product Part Numbers

Product Code
SSD-WA512T-EU - 512GB, SSD-WA1.0T-EU - 1TB
Manuals / Setup / Latest Product Information
Documentation & Software --
Driver
Release notes 1.20 Windows 13-10-2015
Thunderbolt driver 1.20 Windows 13-10-2015
